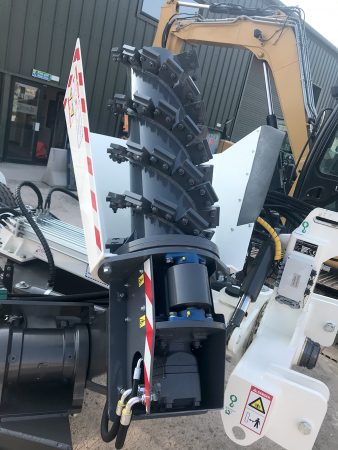

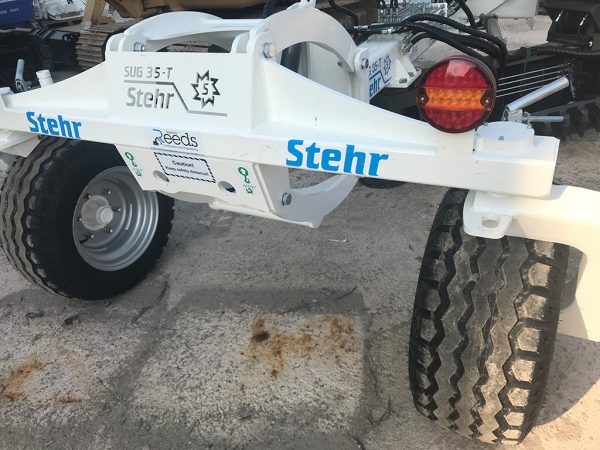

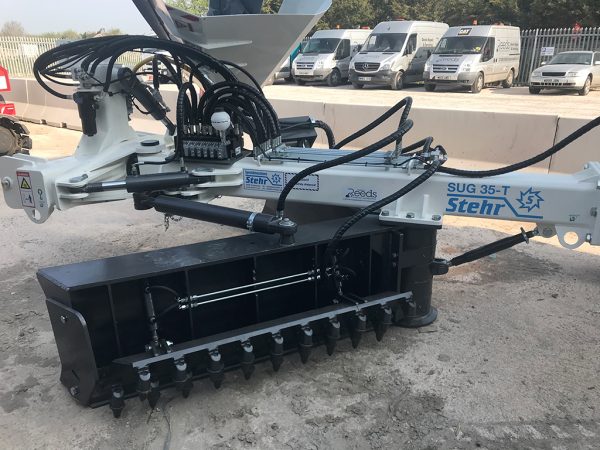

Stehr SUG 35-T
Technical data
- Power requirement carrier: from 150 hp
- Weight: 2200 kg
- Width of: 2500 mm – 3500 mm
- Plate adjustment approx. 2 x 45 degrees
- Hydraulic lateral adjustment approx. 2 x 30 degrees
Equipment
- 7 double-acting hydraulic functions controllable via load sensing from tractor, joystick control lever
- Ripping device up to 10 cm depth
- Camera and monitor for monitoring directly in the cab
Energy efficiency
The high energy efficiency, economical fuel consumption as well as low pollutant and noise emissions always play a major role in the Stehr machines. With over 50 % less fuel compared to conventional machines, payback is achieved by the fuel savings alone.
Benefits
Tearing – Mixing – Profiling – Compacting
- Create crown with one run
- Attachment for tractors / wheel loaders up to 150 HP
- High working speed
- Cost-effective workflow
Information
The ultimate levelling machine for the maintenance and construction of gravel roads.
The crease blade invented by Stehr can be used to produce all road construction profiles. It is also possible to install a crown with one run.
